SMSL PL200T MQA-CD Player Clock Input HiFi Lossless Lid-Open Playback Mod Transport (Silver)

Product Review: High-Performance USB Audio / CD Player

Specifications Overview

• Input: USB Audio / CD Player
• Output: Optical / Coaxial / AES / EBU / I²S
• USB Compatibility:
  • USB 2.0 Asynchronization
  • Windows: 7, 8, 8.1, 10, 11 (Driver Required)
  • Mac OSX: 10.6 and above
  • Android, iOS, Linux (Driveless)
• Maximum Sampling Rate:
  • I²S Output: PCM 44.1~768kHz, DSD 2.8224~22.5792MHz
  • Optical / Coaxial / AES / EBU: PCM 24bit / 192kHz
  • MQA: 8-fold expansion up to 384kHz (limited to 192kHz due to SPDIF)
• Clock Input:
  • Frequency: 44.1kHz or 10MHz
  • Impedance: 50 ohms or 75 ohms
  • Waveform: Square wave or sine wave
  • Level: Square wave TTL level, sine wave > 1Vrms
• Power Consumption: 15W
• Size: 200 x 42 x 175mm (W x H x D)
• Weight: 1.62kg / 3.57lbs

Features

This USB Audio / CD Player stands out with its MQA full expansion capabilities, clock input options, and an elegant piano key design. Constructed from an all-aluminum monolithic CNC structure, it supports USB input up to 32bit/768kHz and DSD512. It achieves reference-level digital interface functions with an emphasis on clock input precision.

Performance

Equipped with a self-developed precision access servo system, the device boasts native support for MQA-CD. Over the span of two years, SMSL has refined this servo system to ensure fast response and exceptional reading capabilities. Enhanced by a vibration damper, this player provides impressive anti-vibration mechanics, ensuring consistent playback quality.

Output Versatility

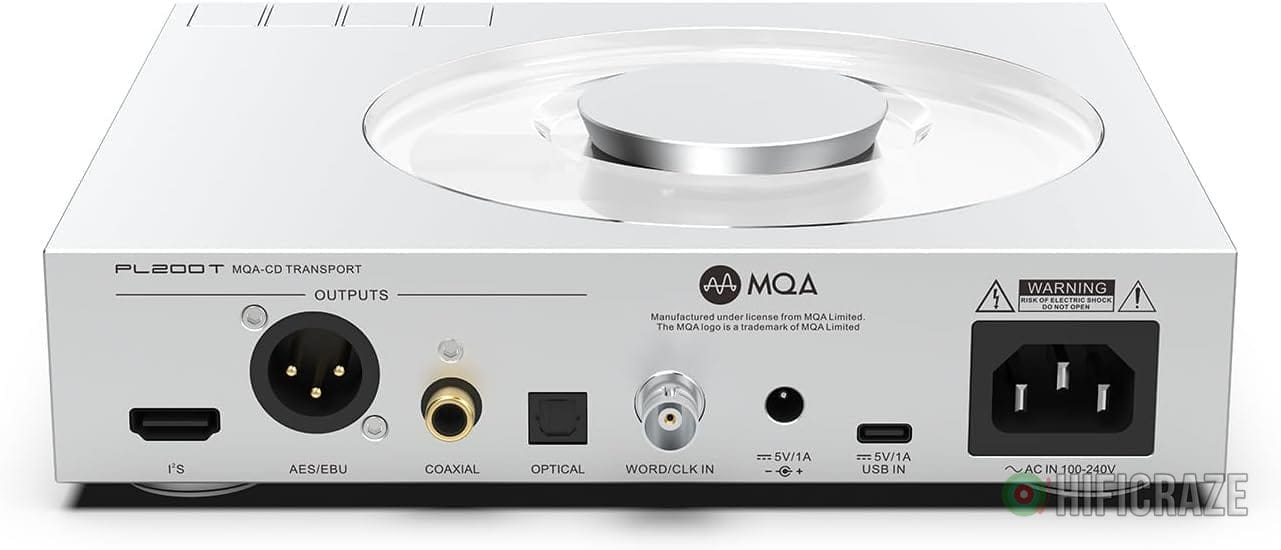

The player supports multiple output interfaces, including optical, coaxial, I²S, and AES/EBU, featuring multiple low phase noise crystals and clock circuits for optimal performance.

Design and Display

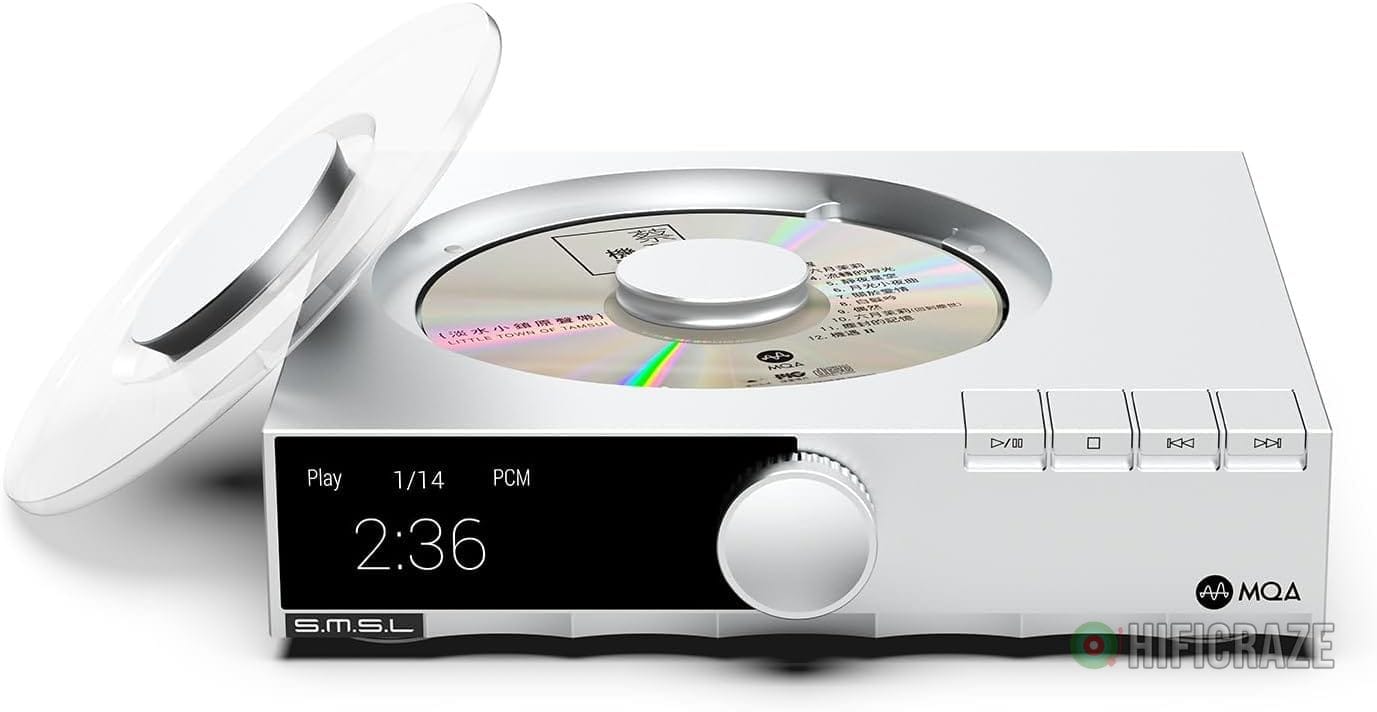

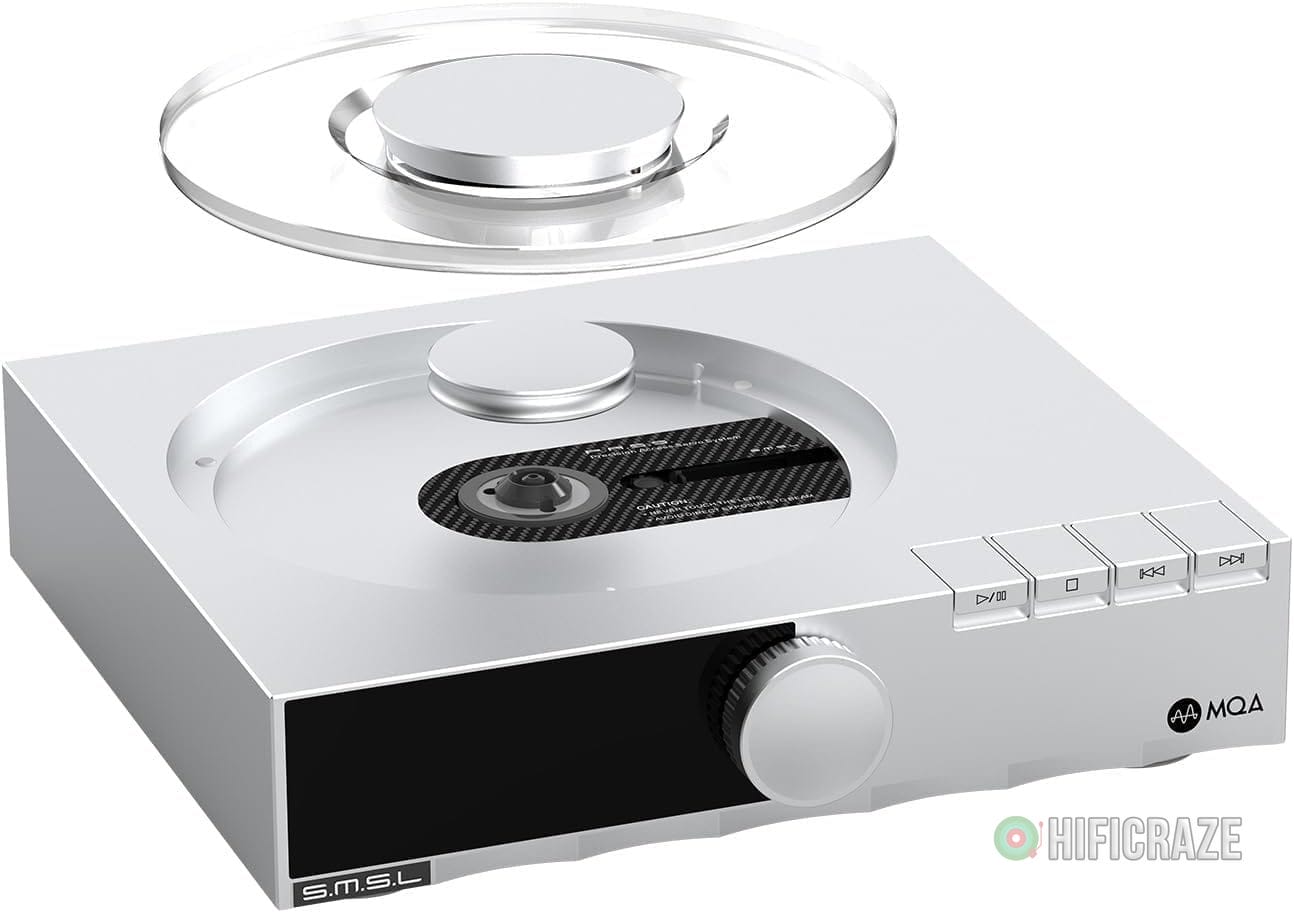

The tempered glass fully laminated lPS display and newly developed user interface elevate the aesthetic appeal. Featuring a transparent acrylic CD lid, this design not only offers dust protection but also allows users to observe the CD in action without the risk of breakage.

Conclusion

The high-performance USB Audio / CD Player is ideal for audiophiles seeking premium sound quality and versatile features. Its combination of advanced specifications and elegant design make it a standout choice in the market.
