Mini Small Stereo Audio preamplifier, Headphone Amplifier, Gain 20dB Phono Turntable Phonograph preamp, Dual op amp NE5532 with RCA 3.5mm Input to RCA 3.5mm Output

Mini Stereo Audio Preamplifier Review

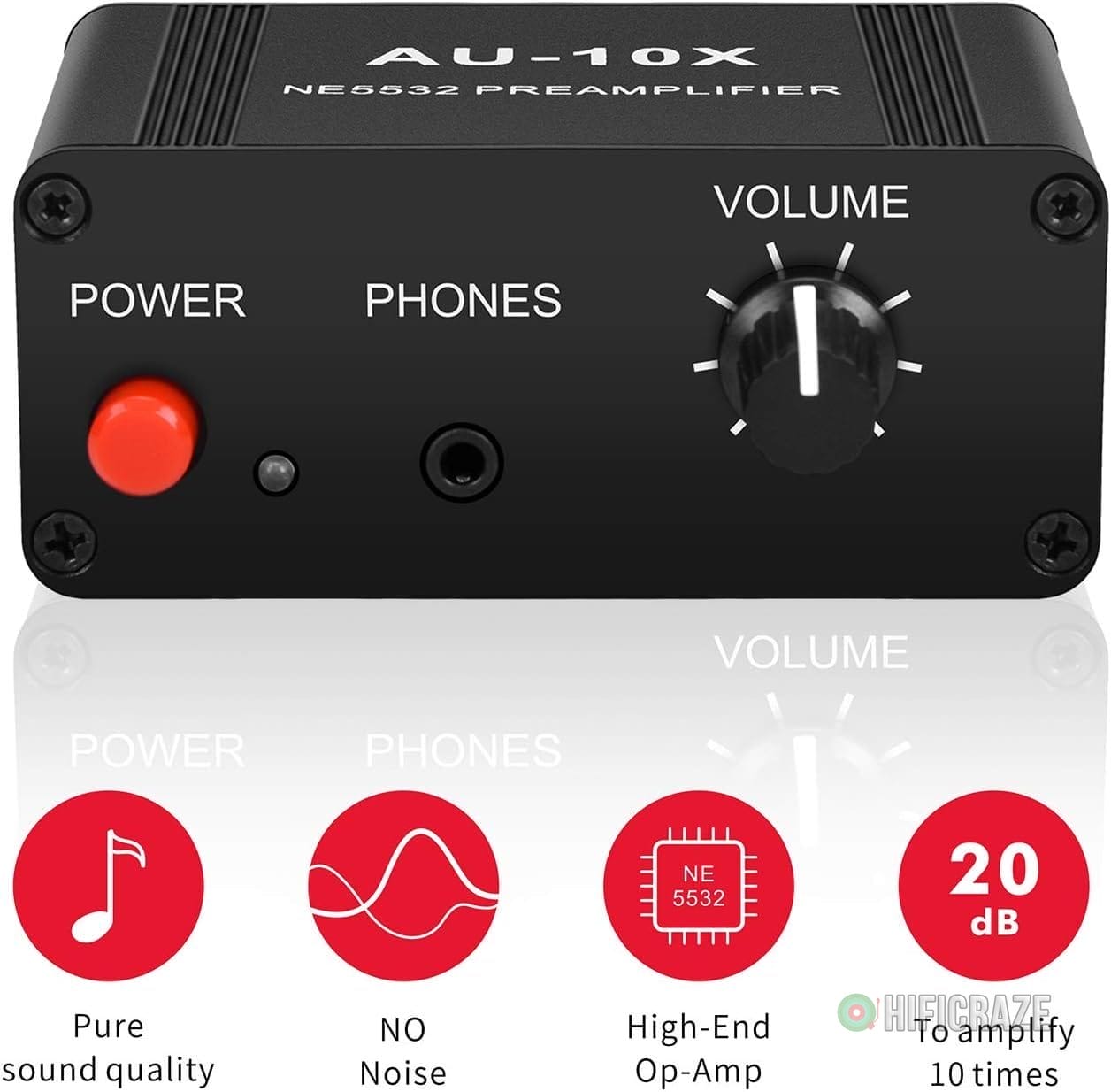

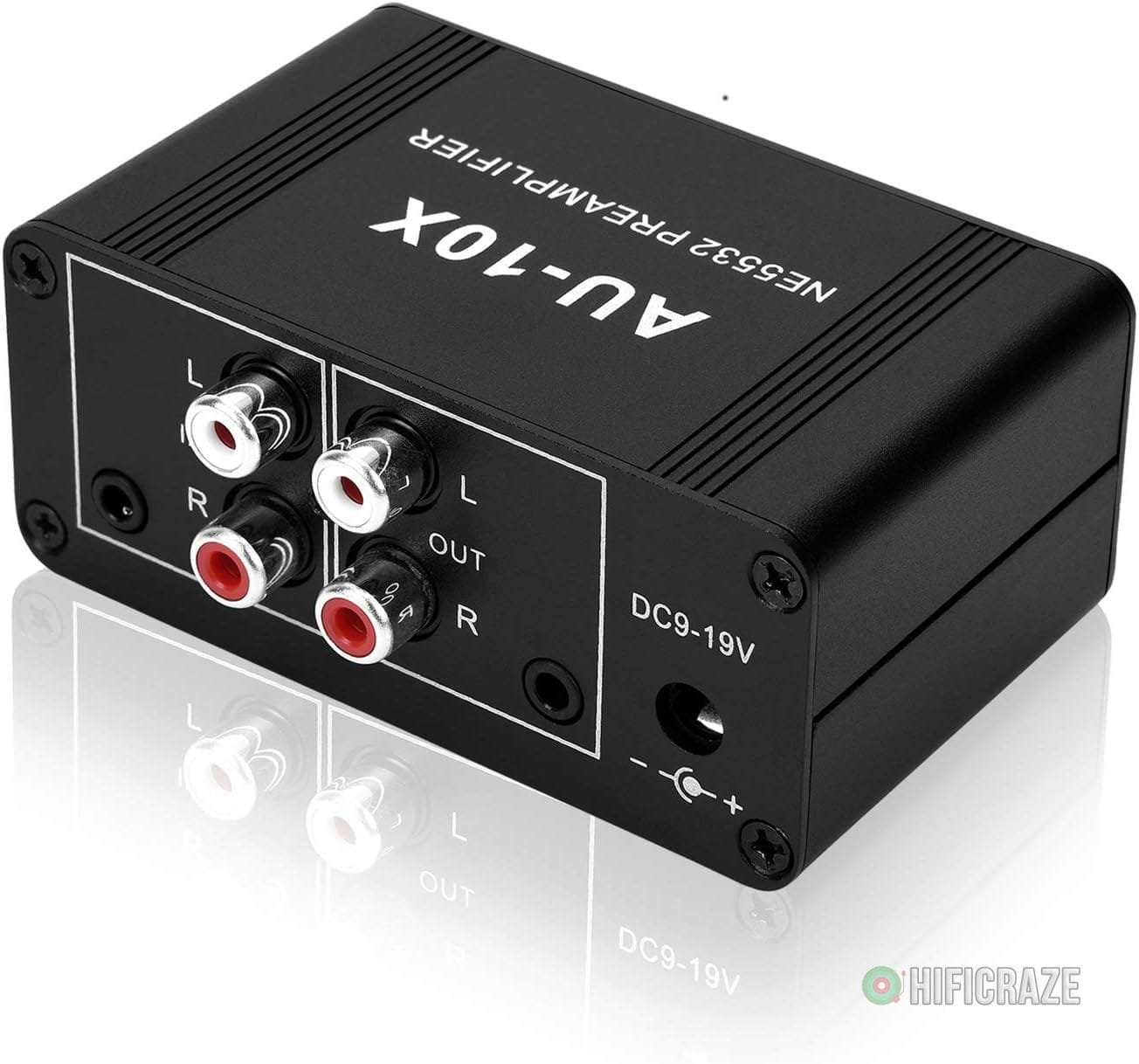

Overview of the Mini Stereo Audio Preamplifier (Model No: AU-10X)

The Mini Stereo Audio Preamplifier, model AU-10X, is designed to enhance your audio experience by powering weak signals into line-level outputs. With impressive versatility and a compact design, it caters to both audiophiles and everyday users alike.

Specifications

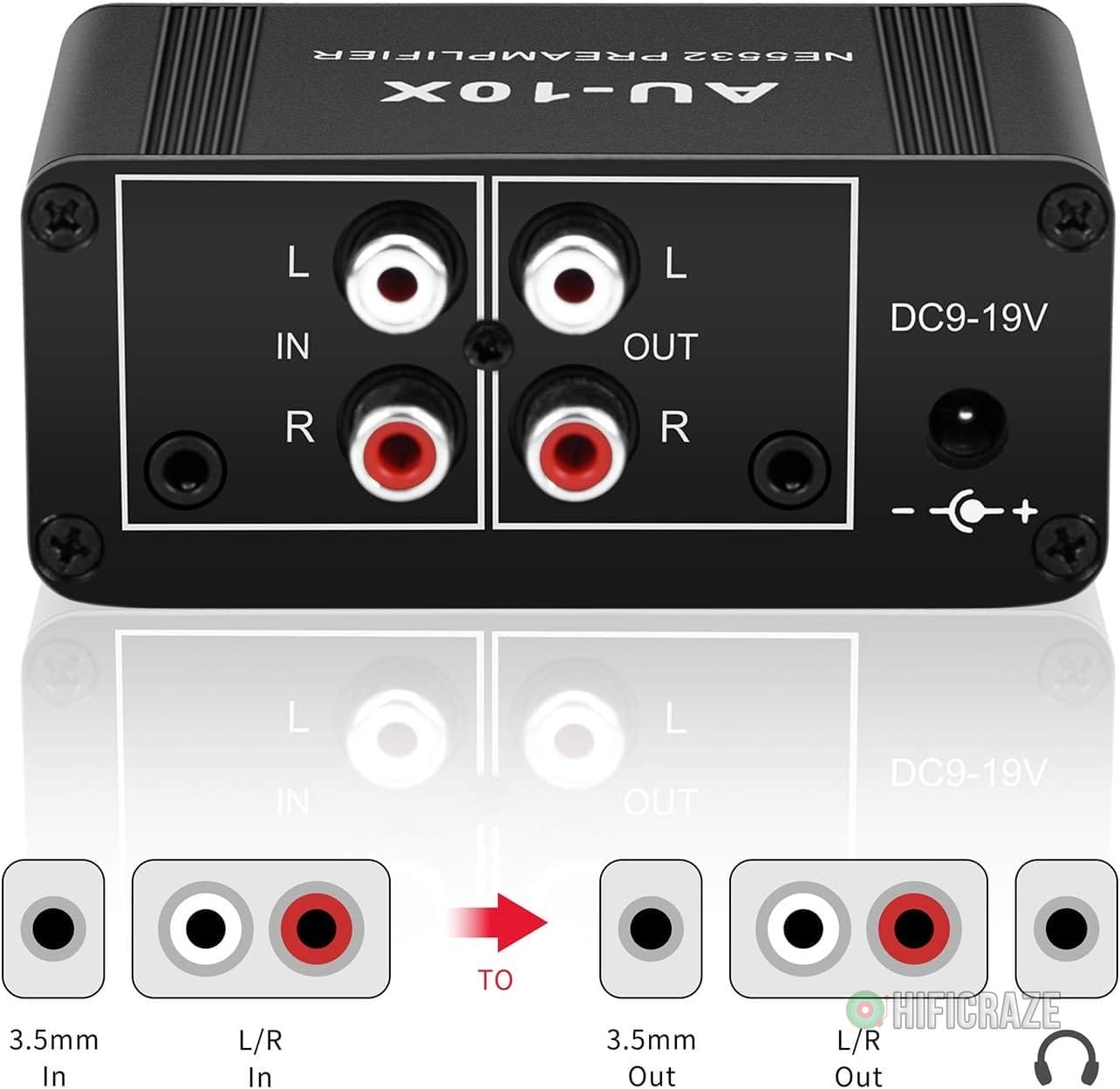

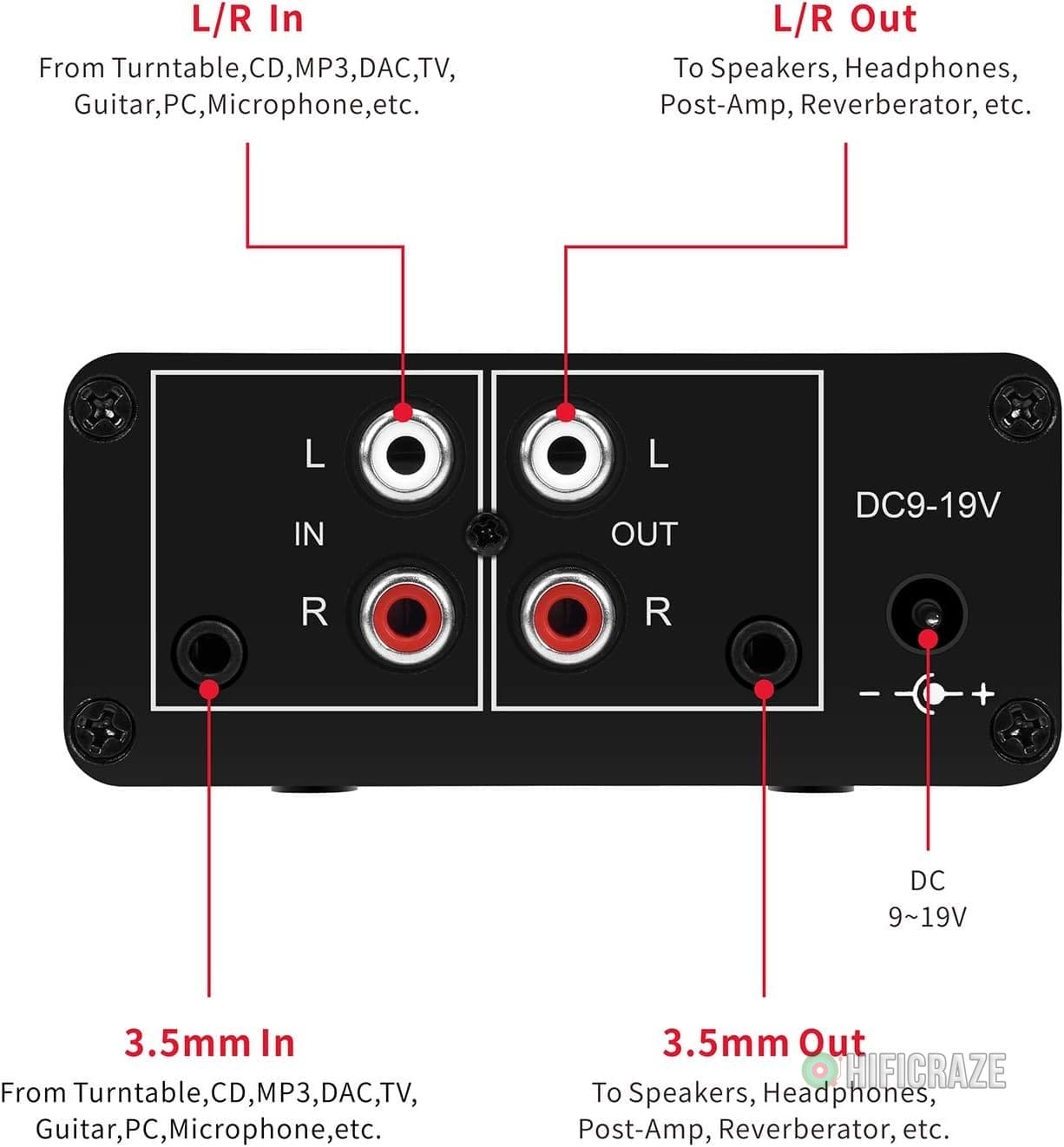

• Input: RCA (L / R) + 3.5mm
• Output: RCA (L / R) + 3.5mm + headphones
• Size: 3.42in x 1.96in x 1.45in (87mm x 50mm x 37mm)
• Powered: DC 9-19V

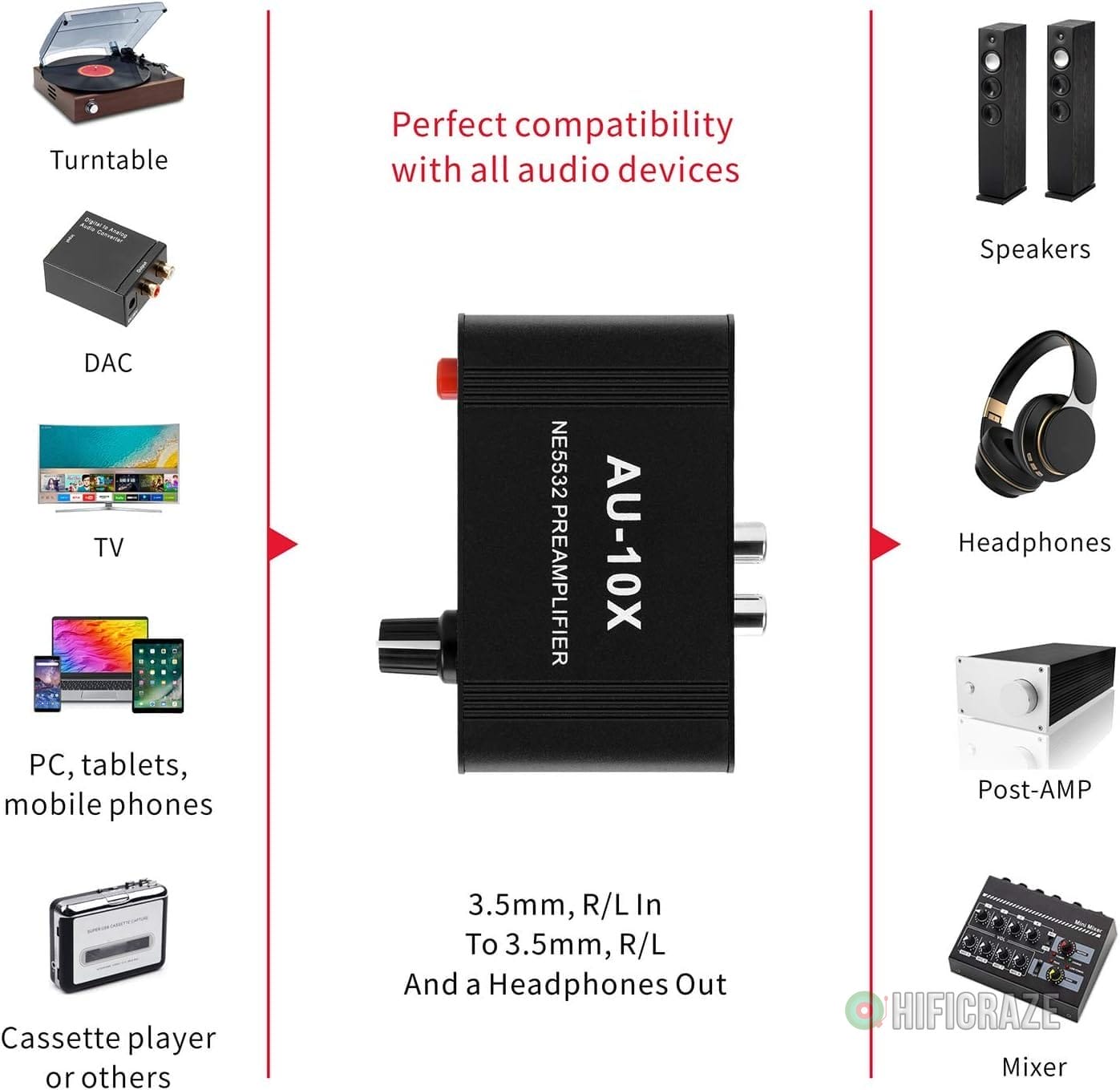

• Compatible Input Devices: DVD, CD, set-top box, MP3, TV, mobile phone, computer, tablet, microphone, phono turntable, sound card, guitar, bass, electronic instrument, game console, and more.
• Compatible Output Devices: Active speakers, desktop speakers, subwoofer, sound blaster, reverberator, AV receiver, post-amp, headphones, etc.

Performance

Powered by a DC 9-19V supply and featuring a static current of around 8mA, the AU-10X boasts a remarkable amplification of 10 times (20dB). The device incorporates a classic Dual OP AMP NE5532 and high-frequency electrolytic capacitors for noise reduction, ensuring crystal-clear audio without background noise. The headphone output can directly drive headphones with a maximum impedance of 16 ohms, although it cannot be used simultaneously with other output ports.

Design and Usability

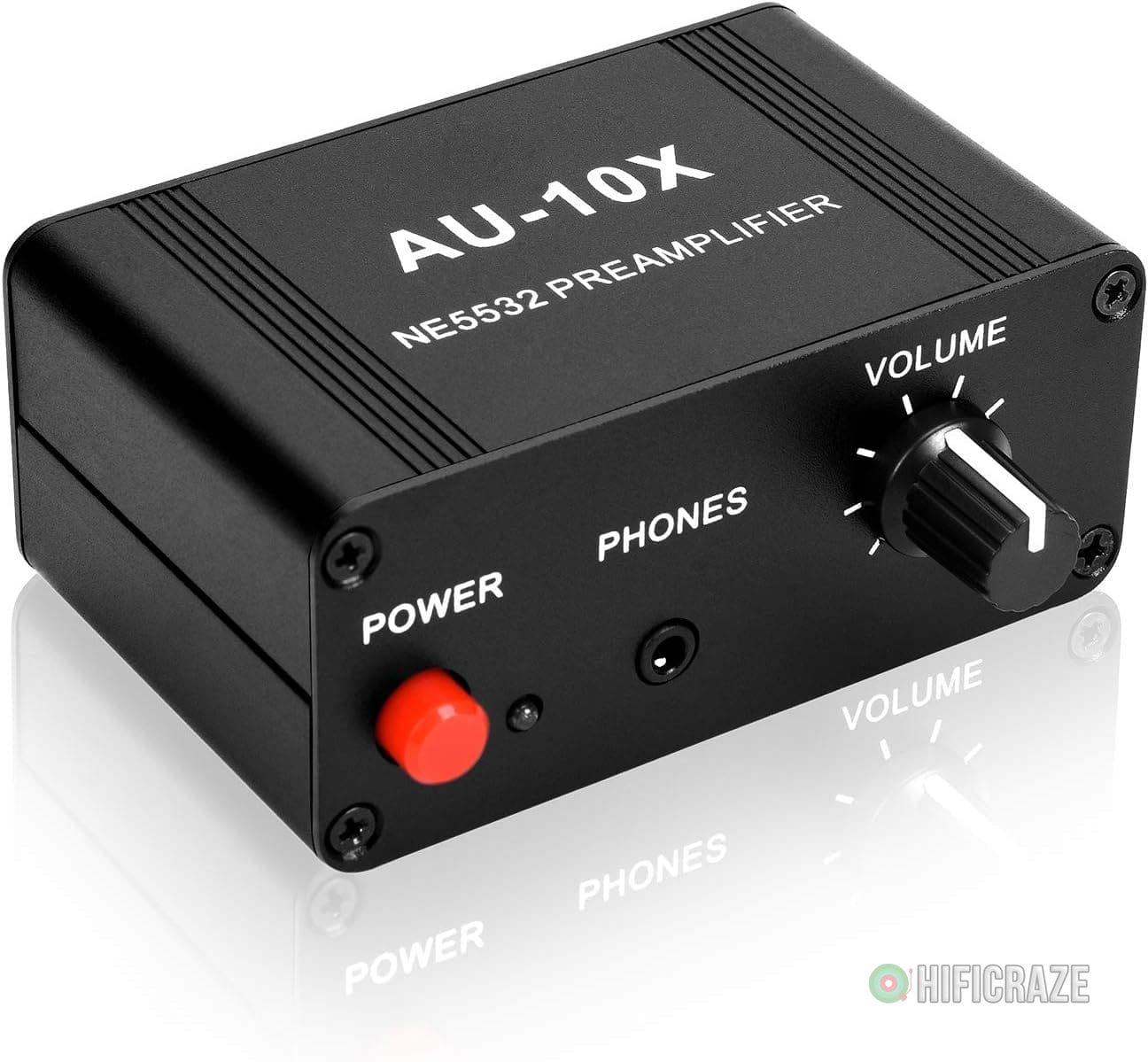

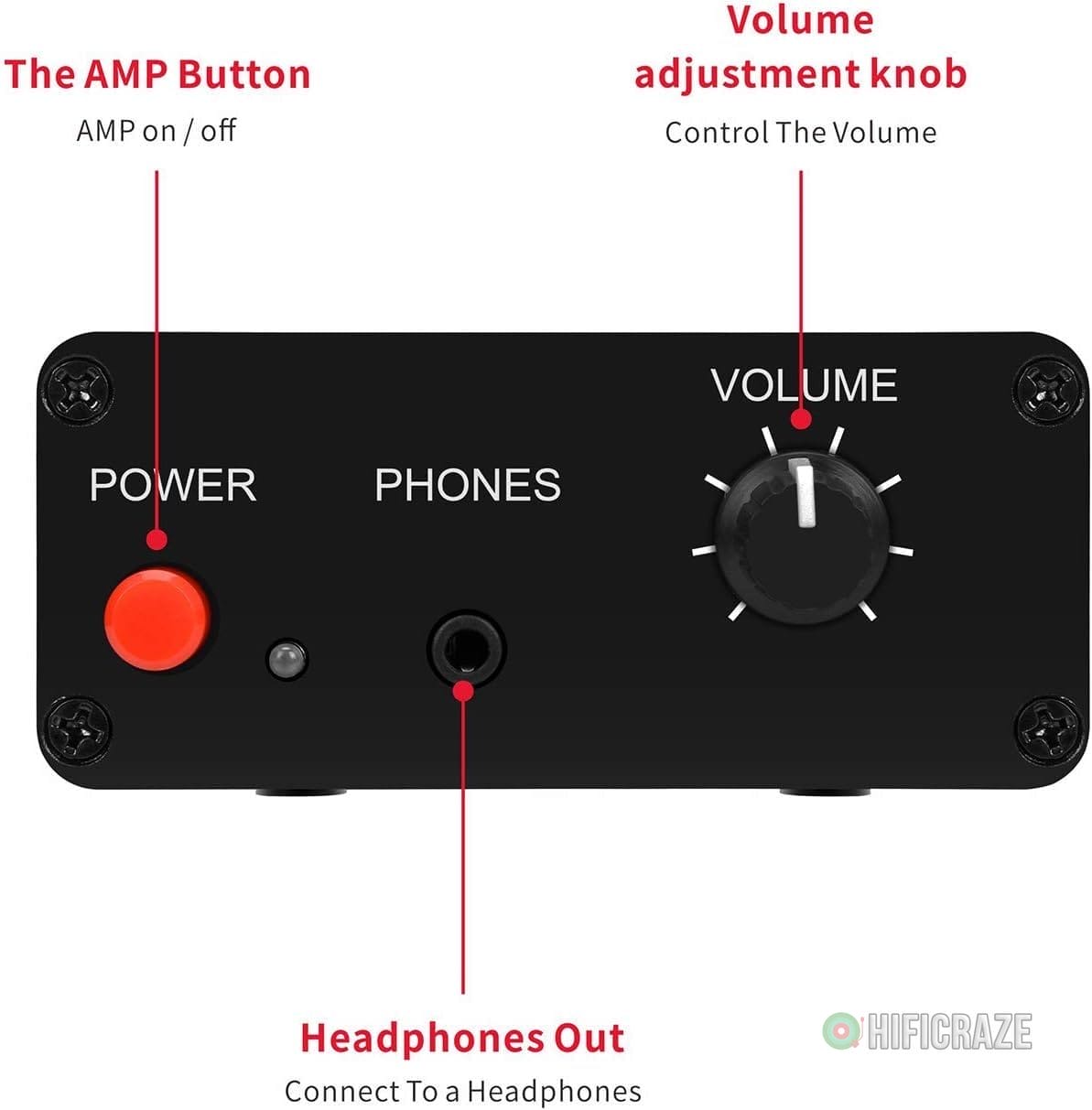

With dimensions of 3.42in x 1.96in x 1.45in, the Mini Stereo Audio Preamplifier is both compact and lightweight, making it portable and user-friendly. The included volume adjustment knob offers users the flexibility to control sound levels seamlessly.

What’s in the Box

– AU-10X preamplifier (1 piece)
– DC power adapter (1 piece)

Conclusion

The Mini Stereo Audio Preamplifier AU-10X is an excellent choice for boosting audio signals while improving overall sound quality. Its wide compatibility with various input and output devices makes it a versatile addition to your audio setup. Whether you’re looking to enhance your home theater system or need a reliable solution for instruments and gaming, the AU-10X delivers outstanding performance in a compact package.
